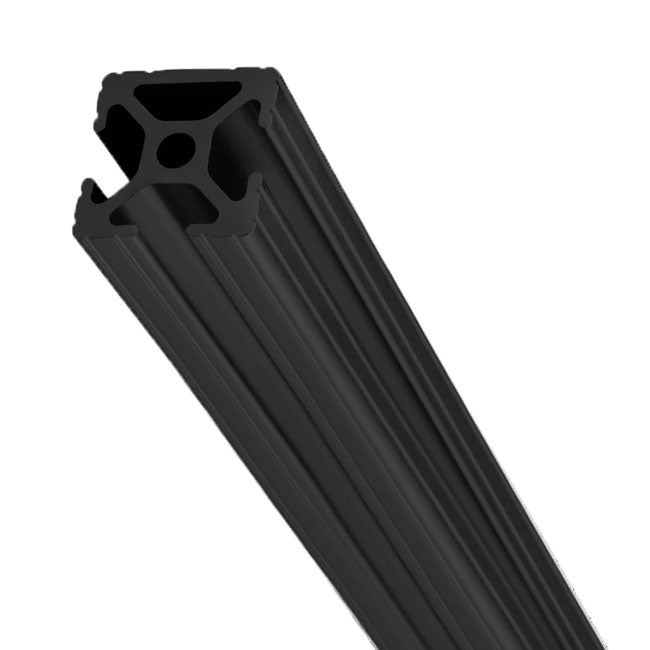

ATI STAR Mounting Rail

The ATI STAR Mounting Rail is the primary building block of the STAR mounting system for mounting either Straton Pro or Straton Flex LED fixtures. Available in multiple sizes and capable of supporting up to three of the Straton Pro 204s.

Durable & Lightweight Design

Made from anodized aluminum that is durable, corrosion-resistant, and will not fade. Ideal for use in saltwater environments.

Seamless Integration

Designed for use with both the ATI STAR Tank Mounting Legs and the ATI STAR Hanging Kit. Mount the rail to the side of the tank using the STAR Mounting Legs or suspend the entire rail above the tank using the STAR Hanging Kit.

Specifications

• Compatible With: ATI Straton Pro 102, 153, & 204 (both Gen 1 and Gen 2) and ATI Straton Flex 102 & 153 (Gen 2). Not compatible with the original Straton fixture.
• Use With: ATI STAR Tank Mounting Legs or ATI STAR Hanging Kit for Mounting Rail
• Available Sizes: 25 in., 37 in., 49 in., 61 in., 73 in.
• Maximum # of Fixtures:
  • 25”: 1x Straton Pro 102, 153, or 204
  • 37”: 1x Straton Pro 102, 153, or 204; 1x Straton Flex 102
  • 49”: 2x Straton Pro 102, 153, or 204; 1x Straton Flex 102
  • 61”: 2x Straton Pro 102, 153, or 204; 1x Straton Flex 153
  • 73”: 3x Straton Pro 102, 153, or 204; 1x Straton Flex 153
• Dimensions: Rail Length. x 1.0 in. x 1.0 in. (L x W x H)
• Weight: 1.3 lbs. (25”), 1.7 lbs. (37”), 2.3 lbs. (49”), 2.8 lbs. (61”), 3.3 lbs. (73”)
• Color: Black

What's Included (i.e., what’s in the box)

1. ATI STAR Mounting Rail
